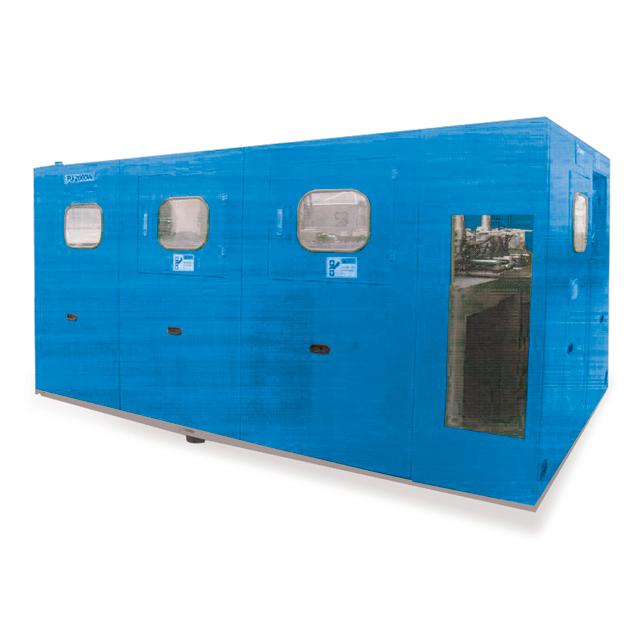

| PET油瓶拉伸吹瓶机工程规格表 PET OIL STRETCH BLOW MOULDING MACHINE | |||||||
| UNIT | JQ-2BL | JQ-1BL | |||||
成型组规格 MOLDING | 合模力 | Clamping force | kg | 30000 | 13000 | ||
| 模具行程 | Clamping stroke | mm | 220 | 175 | |||
| 拉杆行程 | Stretching stroke | mm | 320 | 320 | |||
| 底膜行程 | Bottom stroke | mm | 60 | 60 | |||
| 瓶子间距 | Cavity pitch | mm | 225 | 190.5 | |||
| 模穴数 | Number of cavity | Cavities | 2 | 1 | |||
瓶型规格 CONTAINER | 瓶子最大容量 | Max.container volume | ltr | 5 | 5 | ||
| 最大牙部尺寸 | Neck diameter range | mm | 30-50 | 30-63 | |||
| 最大瓶身直径 | Max.container diameter | mm | 165 | 160 | |||
| 最大瓶身高度 | Max.container height | mm | 320 | 320 | |||
| 胚头数 | Carriage unit | pcs | 66 | 26 | |||
| 理论产能 | THEORETICAL OUTPUT | bph | 1200 | 700 | |||
电力规格 ELECTRICAL SYSTEM | 总耗电量 | Total power | KW | 59 | 35 | ||
| 加热功率 | Heating power | KW | 56 | 33 | |||
| 灯管配置 | Max.heating power | KW | 80 | 42 | |||
空压规格 AIR SYSTEM | 操作压力 | Operting pressure | kg/cm2 | 7 | 7 | ||
| 低压耗气量 | Air consuming | ltr/min | 1500 | 1000 | |||
| 吹瓶压力 | Blowing pressure | kg/cm2 | 35 | 30 | |||
| 高压耗气量 | Air consuming | ltr/min | 3100(4500) | 1500 | |||
冷冻机规格 CHILED WATER | 操作压力 | Operation pressure | kg/cm2 | 2-4 | 2-4 | ||
| 温度范围 | Temperature | ℃ | 10-12 | 10-12 | |||
| 消耗量 | Consuming | kcal/hr | 5400 | 2700 | |||
| 流量 | Fiow rate | ltr/min | 45 | 45 | |||
冷却水规格 COOLING WATER | 操作压力 | Operation pressure | kg/cm2 | 2-4 | 2-4 | ||
| 温度范围 | Temperature | ℃ | 30 | 25 | |||
| 消耗量 | Consuming | kcal/hr | 30000 | 30000 | |||
| 流量 | Fiow rate | ltr/min | 100 | 100 | |||
机台规格 MACHINE | 机台尺寸 | Machine size | mm | 3070*2090*2500 | 2550*1200*2200 | ||
| 机台重量 | Machine weight | kg | 4000 | 2000 | |||
| 备注 REMARK | 1.以生产0.6L瓶的基本耗气量。 2.最终产能需依据瓶胚及瓶型而定。 3.规格有变更，恕不另行通知。 | 1.All data standard indication for 0.6L bottle. 2.The actual output depends on the preformquality and bollte shape. 3.Specifications are subject to change without notice | |||||
