产品详情

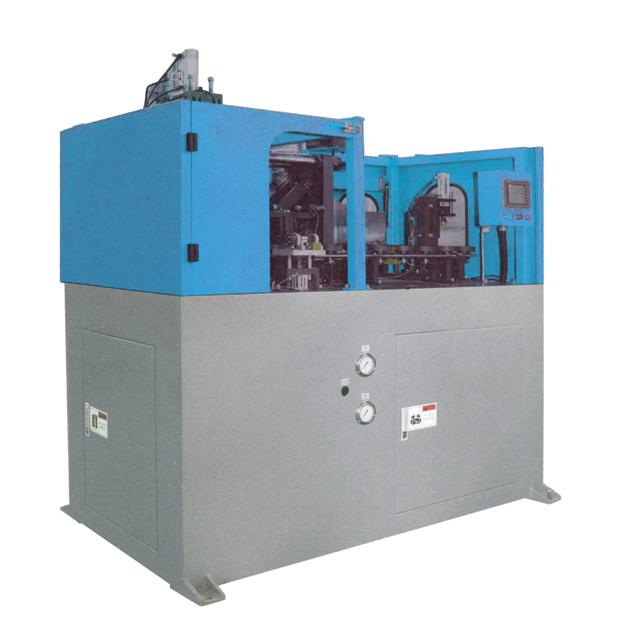

| 吹瓶机工程规格表 SPECIFICATIONS OF STRETCH BLOW MOULDING MACHINE | ||||||||
| UNIT | JQ-CS1000WL | JQ-C1000W | JQ-CSSS2000 | JQ-CSSS4000 | JHQ-CSS2000 | |||
成型组规格 MOLDING | 合模力 | Clamping force | kg | 11000 | 11000 | 5500 | 5500 | 16000 |
| 模具行程 | Clamping stroke | mm | 110 | 110 | 80 | 80 | 110 | |
| 拉杆行程 | Stretching stroke | mm | 410 | 410 | 250 | 150 | 240 | |
| 底膜行程 | Bottom stroke | mm | 60 | 60 | 60 | 60 | 80 | |
| 瓶子间距 | Cavity pitch | mm | 190.2 | 136.2 | 60 | 60 | 76.2 | |
| 模穴数 | Number of cavity | Cavities | 1 | 1 | 2 | 4 | 2 | |
瓶型规格 CONTAINER | 瓶子最大容量 | Max.container volume | ltr | 5 | 3 | 0.2 | 0.2 | 0.6 |
| 最大牙部尺寸 | Neck diameter range | mm | 88-130 | 63-110 | 18-30 | 18-30 | 18-38 | |
| 最大瓶身直径 | Max.container diameter | mm | 150 | 120 | 50 | 50 | 58 | |
| 最大瓶身高度 | Max.container height | mm | 320 | 320 | 150 | 150 | 240 | |
| 胚头数 | Carriage unit | pcs | 29 | 26 | 56 | 102 | 57 | |
| 理论产能 | THEORETICAL OUTPUT | bph | 1200 | 1200 | 2000 | 4000 | 2000 | |
电力规格 ELECTRICAL SYSTEM | 总耗电量 | Total power | KW | 17.5 | 17.5 | 9 | 20 | 27 |
| 加热功率 | Heating power | KW | 6 | 6 | 8.6 | 18 | 24 | |
| 灯管配置 | Max.heating power | KW | 17.5 | 17.5 | 11.5 | 23 | 30 | |
空压规格 AIR SYSTEM | 操作压力 | Operting pressure | kg/cm2 | 7 | 7 | 7 | 7 | 7 |
| 低压耗气量 | Air consuming | ltr/min | 1000 | 1000 | 1000 | 1000 | 2000 | |
| 吹瓶压力 | Blowing pressure | kg/cm2 | 32 | 32 | 35 | 35 | 35 | |
| 高压耗气量 | Air consuming | ltr/min | 1400 | 1400 | 1500 | 1900 | 2400 | |
冷冻机规格 CHILED WATER | 操作压力 | Operation pressure | kg/cm2 | 2-4 | 2-4 | 2-4 | 2-4 | 2-4 |
| 温度范围 | Temperature | ℃ | 10-12 | 10-12 | 10-12 | 10-12 | 10-12 | |
| 消耗量 | Consuming | kcal/hr | 5400 | 5400 | 5400 | 5400 | 5400 | |
| 流量 | Fiow rate | ltr/min | 30 | 30 | 30 | 30 | 30 | |
冷却水规格 COOLING WATER | 操作压力 | Operation pressure | kg/cm2 | 5-6 | 5-6 | 5-6 | 2-4 | 2-4 |
| 温度范围 | Temperature | ℃ | 25 | 25 | 25 | 30 | 30 | |
| 消耗量 | Consuming | kcal/hr | 12000 | 12000 | 12000 | 12000 | 30000 | |
| 流量 | Fiow rate | ltr/min | 40 | 40 | 40 | 40 | 1000 | |
机台规格 MACHINE | 机台尺寸 | Machine size | mm | 1830*1100*2172 | 1900*950*2172 | 1830*940*1455 | 2900*1190*1455 | 1200*2150*2500 |
| 机台重量 | Machine weight | kg | 1200 | 1200 | 1000 | 1500 | 2300 | |
| 备注 REMARK | 1.以生产0.6L瓶的基本耗气量。 2.最终产能需依据瓶胚及瓶型而定。 3.规格有变更，恕不另行通知。 | 1.All data standard indication for 0.6L bottle. 2.The actual output depends on the preformquality and bollte shape. 3.Specifications are subject to change without notice | ||||||
